4.5-inch 480*854 Full-Viewing-Angle IPS LCD Module with Resistive Touch and 3-wire SPI Interface

1. Module Name: 4.5‑inch 480*854, ILI9806E, 16/18/24‑bit RGB, 3‑wire SPI Interface Full‑Viewing‑Angle IPS LCD Module with Resistive Touch Screen
2. Model:
3. Compatible Models:
4. Size: 4.5‑inch
5. With Touch Function: Yes
6. Product Category: IPS, TFT Transmissive
7. Display Colors: 16.7M
8. Resolution: 480*854
9. Dot Pitch: 0.1155(H)*0.1155(V)
10. Viewing Angle: Full viewing angle
11. Control IC: ILI9806E
12. Display Type: Transmissive, Normally Black
13. Outline Dimension: 61.54*110.09*3.80mm
14. Active Area: 55.44*98.64mm
15. Brightness: 400cd/m²
16. Contrast Ratio: 1000
17. Interface Type: 3‑wire SPI + 16/18/24‑bit RGB Interface
18. Number of Pins: 45
19. Pin Pitch: 0.5mm
20. Connection Type: FPC Plug‑in Type
21. Operating Voltage: 3.3V
22. Backlight Color and Type: White LED Backlight
23. Backlight Circuit: 8 LEDs, 4‑series 2‑parallel
Vled =11.6‑13.6V, Iled=40mA
24. Service Life: 50000h
25. Operating Temperature: ‑20‑70°C
26. Storage Temperature: ‑30‑80°C
27. Quality System Certification: ISO9001, ISO14001, ISO13485, IATF 16949
28. Product Certification: RoHS

Product Tags:

4.5-inch IPS LCD module



480*854 resistive touch display



industrial TFT display with SPI interface

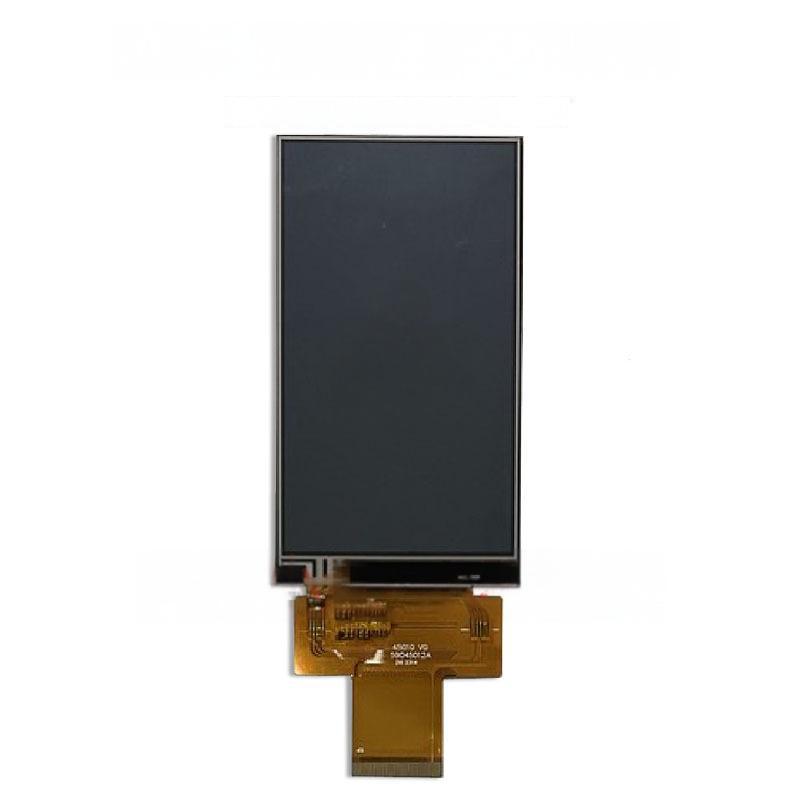

4.5-inch 480*854 Full-Viewing-Angle IPS LCD Module with Resistive Touch and 3-wire SPI Interface Images
